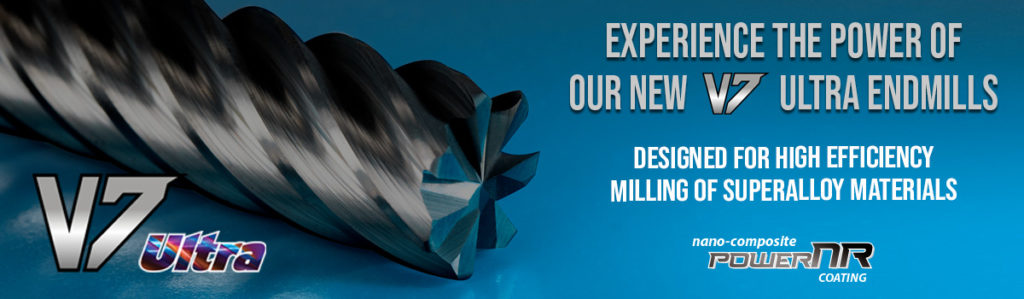

Our V7 endmills with nano-composite PowerNR coating allow for faster material removal in Stainless Steel, Inconel, exotic materials, higher Rockwell materials, and thin wall materials. The excellent cutting ability of these tools results from higher flute count (7), longer length of cut, light chip load, and high feed rate.
V7 Endmills - Fractional Square and Corner Radius
Cutting Diameter | Length of Cut | Shank Diameter | Overall Length | Square | .015 Corner Radius | .020 Corner Radius | .030 Corner Radius | .060 Corner Radius |
---|---|---|---|---|---|---|---|---|
1/4 | 3/8 | 1/4 | 2 | 449-002-8 | 449-401-8 | 449-402-8 | 449-403-8 | - |
1/4 | 1/2 | 1/4 | 2 | 449-004-8 | 449-411-8 | 449-412-8 | 449-413-8 | - |
1/4 | 3/4 | 1/4 | 2-1/2 | 449-006-8 | 449-421-8 | 449-422-8 | 449-423-8 | - |
1/4 | 1 | 1/4 | 3 | 449-008-8 | 449-431-8 | 449-432-8 | 449-433-8 | - |
1/4 | 1-1/4 | 1/4 | 3 | 449-010-8 | 449-441-8 | 449-442-8 | 449-443-8 | - |
5/16 | 7/16 | 5/16 | 2 | 449-012-8 | 449-451-8 | 449-452-8 | 449-453-8 | - |
5/16 | 3/4 | 5/16 | 2-1/2 | 449-014-8 | 449-461-8 | 449-462-8 | 449-463-8 | - |
5/16 | 1 | 5/16 | 3 | 449-016-8 | 449-471-8 | 449-472-8 | 449-473-8 | - |
3/8 | 1/2 | 3/8 | 2 | 449-018-8 | 449-481-8 | 449-482-8 | 449-483-8 | 449-485-8 |
3/8 | 3/4 | 3/8 | 2-1/2 | 449-020-8 | 449-491-8 | 449-492-8 | 449-493-8 | 449-495-8 |
3/8 | 1 | 3/8 | 2-1/2 | 449-022-8 | 449-501-8 | 449-502-8 | 449-503-8 | 449-505-8 |
3/8 | 1-1/2 | 3/8 | 3-1/2 | 449-024-8 | 449-511-8 | 449-512-8 | 449-513-8 | 449-515-8 |
3/8 | 2 | 3/8 | 4 | 449-026-8 | 449-521-8 | 449-522-8 | 449-523-8 | 449-525-8 |
1/2 | 5/8 | 1/2 | 2-1/2 | 449-028-8 | 449-531-8 | 449-532-8 | 449-533-8 | 449-535-8 |
1/2 | 1 | 1/2 | 3 | 449-030-8 | 449-541-8 | 449-542-8 | 449-543-8 | 449-545-8 |
1/2 | 1-1/4 | 1/2 | 3 | 449-032-8 | 449-551-8 | 449-552-8 | 449-553-8 | 449-555-8 |
1/2 | 1-5/8 | 1/2 | 4 | 449-034-8 | 449-561-8 | 449-562-8 | 449-563-8 | 449-565-8 |
1/2 | 2 | 1/2 | 4 | 449-036-8 | 449-571-8 | 449-572-8 | 449-573-8 | 449-575-8 |
1/2 | 2-1/2 | 1/2 | 5 | 449-038-8 | 449-581-8 | 449-582-8 | 449-583-8 | 449-585-8 |
1/2 | 3-1/8 | 1/2 | 6 | 449-040-8 | 449-591-8 | 449-592-8 | 449-593-8 | 449-595-8 |
5/8 | 3/4 | 5/8 | 3 | 449-042-8 | 449-601-8 | 449-602-8 | 449-603-8 | 449-605-8 |
5/8 | 1-1/4 | 5/8 | 3-1/2 | 449-044-8 | 449-611-8 | 449-612-8 | 449-613-8 | 449-615-8 |
5/8 | 1-5/8 | 5/8 | 4 | 449-046-8 | 449-621-8 | 449-622-8 | 449-623-8 | 449-625-8 |
5/8 | 2-1/8 | 5/8 | 4 | 449-048-8 | 449-631-8 | 449-632-8 | 449-633-8 | 449-635-8 |
5/8 | 1 | 3/4 | 3 | 449-050-8 | 449-641-8 | 449-642-8 | 449-643-8 | 449-645-8 |
3/4 | 1-1/4 | 3/4 | 3-1/2 | 449-052-8 | 449-651-8 | 449-652-8 | 449-653-8 | 449-655-8 |
3/4 | 1-5/8 | 3/4 | 4 | 449-054-8 | 449-661-8 | 449-662-8 | 449-663-8 | 449-665-8 |
3/4 | 2-1/4 | 3/4 | 5 | 449-056-8 | 449-671-8 | 449-672-8 | 449-673-8 | 449-675-8 |
3/4 | 3-1/4 | 3/4 | 6 | 449-058-8 | 449-681-8 | 449-682-8 | 449-683-8 | 449-685-8 |
1 | 1-1/2 | 1 | 4 | 449-060-8 | 449-691-8 | 449-692-8 | 449-693-8 | 449-695-8 |
1 | 2 | 1 | 5 | 449-062-8 | 449-701-8 | 449-702-8 | 449-703-8 | 449-705-8 |
1 | 3-1/4 | 1 | 6 | 449-064-8 | 449-711-8 | 449-712-8 | 449-713-8 | 449-715-8 |
V7 Endmills - Metric Square and Corner Radius
Cutting Diameter | Length of Cut | Shank Diameter | Overall Length | Square | .50mm Corner Radius | 1mm Corner Radius | 2mm Corner Radius | 3mm Corner Radius | 4mm Corner Radius |
---|---|---|---|---|---|---|---|---|---|
6 | 13 | 6 | 57 | 549-006-8 | 549-421-8 | 549-423-8 | 549-426-8 | - | - |
8 | 19 | 8 | 63 | 549-014-8 | 549-461-8 | 549-463-8 | 549-466-8 | 549-467-8 | - |
10 | 19 | 10 | 63 | 549-020-8 | 549-491-8 | 549-493-8 | 549-496-8 | 549-497-8 | 549-498-8 |
12 | 32 | 12 | 84 | 549-034-8 | 549-561-8 | 549-563-8 | 549-566-8 | 549-567-8 | 549-568-8 |
16 | 42 | 16 | 92 | 549-046-8 | 549-621-8 | 549-623-8 | 549-626-8 | 549-627-8 | 549-628-8 |
20 | 52 | 20 | 102 | 549-054-8 | 549-661-8 | 549-663-8 | 549-666-8 | 549-667-8 | 549-668-8 |
